Metering Panel

Pakistan's most proven panels

GE-Alstom-merge-together-to-form-GE-Grid-Solutions-white
Arteche-Product-Portfolio-Parent-Site-white
hero_relay_control (2)

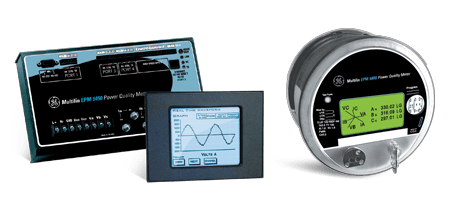

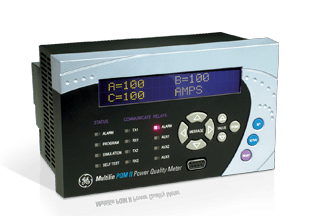

The Metering panels are designed to measure the energy consumption in the grid or monitor the delivery of power between the two companies. So, these panels should be highly accurate and have extensive memory to record the exact amount of energy. Our designed panels with fast communication such as IEC 62052-23 and nonvolatile memory record, maintain and transmit the data accurately and fastly. Keeping in view the protection of panel, EPESOL can provide protection class up-to IP54, and meters of 0.5s and 0.2s.

Climate Conditions

  •  Working temperature range -25 to 55
  •  Humidity condition 0 to 95 %
Mechanical Specs
  •  Semi flush mounted equipment
  •  Rust free
  •  No maintenance for 20 years of normal operations
  •  Paperless recorder
Electrical Specs
  • Voltage
  •  Current
  •  Reference Frequency of 50HZ
  •  Accuracy class 0.5s 0.2s
  • Protection Degree up-to IP65s
Communication
  •  RS 485
  •  RS 485 to RS 232 convertor
  •  communication via GSM
  •  communication via Ethernet
  •  Storage up to 20Gb
