Distribution Protection

The most efficient and cost effective distribution protection

hero_relay_control (2)

Distribution and feeder protection are mainly concerned with 132 kV and below voltage levels. The fundamental protections are over-current and earth fault protection. However, microprocessor-based protection solutions can detect Arc flash and high impedance/broken conductor faults within a single compact protection solution. To prevent these faults, EPESOL provides feeder protection products with the most advance and efficient protection algorithms. These relays are reliable, open, scalable, and fast enough to trip the feeder before any catastrophic failure. EPESOL's distribution and feeder protection solutions, apart from conventional protection, can be used as primary or secondary protection of power transformer, switchgear, busbar, capacitor bank, and reactor.

F650

  • Cost effective protection, automation and control of distribution feeders
  • High speed protection and control for feeder management and bay control
  • Support IEC 61850 Ed2, IEEE 802.1D, IEC 60870-5-103/104, IEC 62439 Communication Protocols
  • Proven interoperability and KEMA 61850 Edition 2 certified

F60

  • Integrated, economical, and compact package
  • Provides high performance feeder protection, control, monitoring and metering
  • Support IEC 61850-9-2LE, 61869, 61850-9-2 Hard Fiber Communication Protocols
  • High-speed fault detection for arc flash mitigation
  • Event Recorder – 1024 time tagged events with 0.5ms scan of digital inputs

Multins 850

  • Integrated, one box solution, used to provide comprehensive protection, control and monitoring
  • An ideal choice for bay control applications
  • Optional Wi-Fi connectivity
  • Easy integration into new or existing SCADA or DCS for enhanced situational awareness
  • High-end cyber security such as AAA, Radius, RBAC and Syslog, enabling NERC CIP requirements.

P143

  • Integrated solution for the complete protection, control and monitoring
  • Protection for overhead lines and underground cables from distribution to transmission voltage levels
  • Wide range of auxiliary functions
  • User friendly GUI
  • Support IEC 61850 Ed2, DNP3.0, IEEE 1588, IEC 60870-5-103 Communication Protocols

P40 Agile Enhanced

  • Sample rate of 64 samples/cycle
  • High I/O density
  • Comprehensive current, voltage, power and frequency protection
  • Compact design for power distribution and industry applications, ideal for on-switchgear installation
  • Support IEC 61850 Ed2, DNP3.0, IEEE 1588, IEC 60870-5-103 Communication Protocols
  • Extensive recording – 2048 events, 25 fault records, disturbance recording at up to 128 samples/cycle
  • Embedded Synchrophasor measurement capabilities
  • Harsh environment coating

Multins 350

Discover More

Busbar

Protection

EPESOL provides high impedance as well as low impedance, centralized and decentralized busbar protection with the possibility of protecting 6 bays at a time.

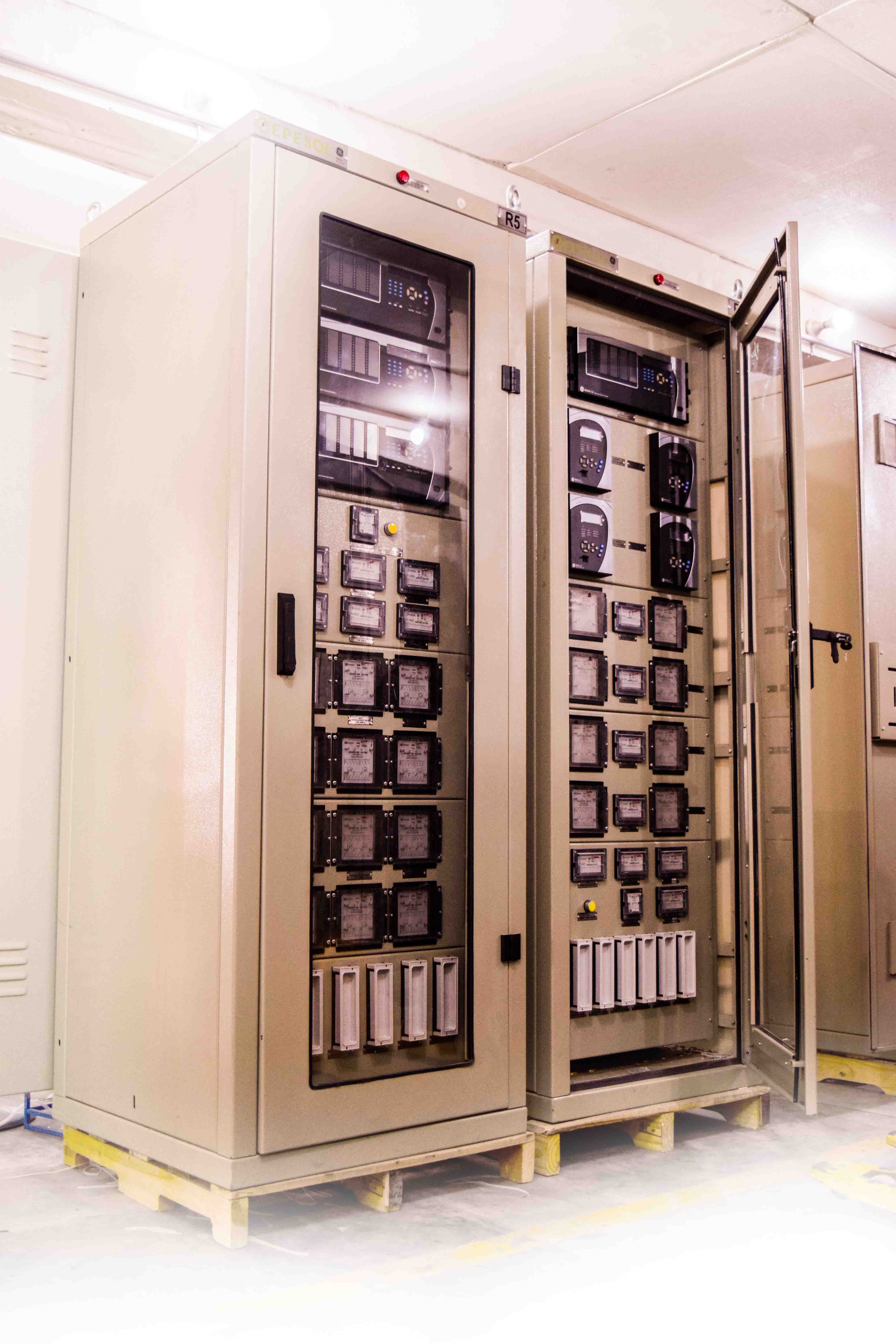

Protection &

Control Panel

EPESOL is the market leader in protection and control with the inhouse design and manufacturing facility for up to 500KV panels.

Retrofit

Solution

EPESOL provides complete retrofit solution form study to design and implementation uniquely transforming the old parameters to new one, while maintaining the whole system.

Auxiliary

Equipment

The best in class, complete range of trip, lockout, and supervision relays and test blocks to meet each application requirement.
